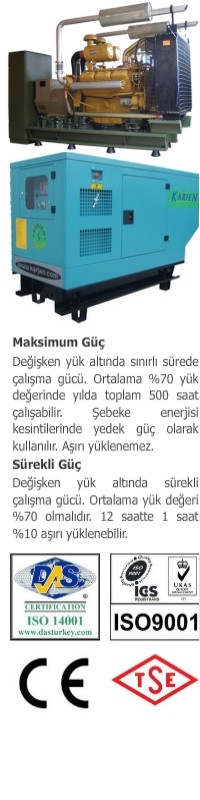

KJDS 275

Dizel Jeneratörler / KJSD275 / kVA - kVA

GROUP
Stand-by Power	275 (220)	kVA (kW)
Prime Power	250 (200)	kVA (kW)
Power Factor	0,8	Cos Phi
Frequency	50	Hz
Sound Level	70	dBA 7m
Guarantee	2 years / 1000 hours	-

ENGINE
Make	SDEC	-
Model	SC12H206	-
Engine Type	-	-
Speed	1500	rpm
Prime Power	205 (278)	kW (HP)
Stand-by Power	225 (306)	kW (HP)
Number of Cylinders	6	-
Cylinder Combination	line	-
Air Indication System	Intercooler	-
Cooling System	Water Cooled	-
Starting System	-	-
Governor Type	Electronic	-
Cylinder Displacement	11,2	lt
Bore ve Stroke	114x144	mm
Compression Ratio	16,5:1	-
Electric System	24V(DC) 105A
Fuel Consumption %100 Loaded	51	lt / h
Fuel Consumption %75 Loaded	40	lt / h
Fuel Consumption %50 Loaded	26	lt / h
Fuel Tank Capasity	327	lt
Fuel Type	Diesel	-
Oil Capacity		lt
Sparkplug Properties		-
Oil Type	25W40	-
Low Oil Alarm	Available	-
Overload Alarm	Available	-
Voltmeter	Available	-
Cabine Type	KB8	-
Panel Type		-
DC Voltage	24 V	-

ALTERNATOR
Make	SKN	-
Model	SKND-280	-
Type	Senkron, Brushless	-
Prime Power	254 (203)	kVA (kW)
Stand-by Power	280 (224)	kVA (kW)
Overloaded	1 hour per 12 hours %110 , 2 minute %120	-
Insulation Resistance	Min. 1800 Volt	V
Short Circuit Current	%300 10 seconds	-
Isolation Class	H	-
Drip Proof	IP 23	-
Voltage	231 / 400	V
Tolerance of Voltage	%0,5	-
Continuous Circuit		A
Phase Number	3	-
Pole Number		-

DIMENSIONS
Width (None-Cabine / Cabine)	1200(1200)	mm
Length (None-Cabine / Cabine)	3450(3800)	mm
Height (None-Cabine / Cabine)	1650(1800)	mm
Weight (None-Cabine / Cabine)	2200(2400)	kg

WELDING
Continuous Welding Circuit	-	A
Circuit Regulation Range	-	A
Priming Voltage	-	V
Idle Welding Voltage	-	V
