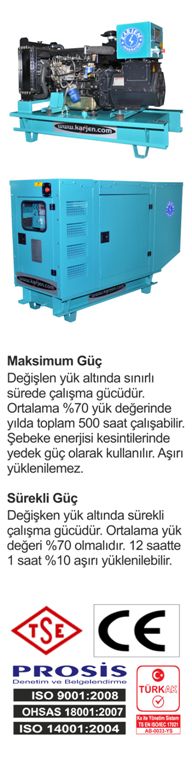

KJPT 13

Dizel Jeneratörler / KJPT13 / kVA - kVA                                                                   GERİ DÖN


GROUP
Stand-by Power13 (10,5)kVA (kW)
Prime Power12 (9,5)kVA (kW)
Power Factor0,8Cos Phi
Frequency50Hz
Sound Level-dBA 7m
Guarantee--

ENGINE
MakePENTA-
ModelKARJEN 13-
Engine Type--
Speed1500rpm
Prime Power21 (28,5)kW (HP)
Stand-by Power23 (31,2)kW (HP)
Number of Cylinders4-
Cylinder CombinationIn-Line-
Air Indication SystemNatural Aspiration, Intercooler-
Cooling SystemWater Cooled-
Starting System--
Governor TypeMechanic-
Cylinder Displacement4lt
Bore ve Stroke90x100mm
Compression Ratio18:1-
Electric System12 V(DC) - 45 A
Fuel Consumption %100 Loaded3,71lt / h
Fuel Consumption %75 Loaded2,8lt / h
Fuel Consumption %50 Loaded2lt / h
Fuel Tank Capasity85lt
Fuel TypeDizel-
Oil Capacity-lt
Sparkplug Properties--
Oil Type--
Low Oil Alarm--
Overload Alarm--
Voltmeter--
Cabine Type--
Panel Type--
DC Voltage-

ALTERNATOR
MakeSKN-
ModelSKNA-13-
TypeSenkron, Brushless-
Prime Power12 (9,5)kVA (kW)
Stand-by Power13 (10,5)kVA (kW)
Overloaded1 hour per 12 hours %110 , 2 minute %120-
Insulation ResistanceMinimum 1800V
Short Circuit Current%300 10 seconds-
Isolation ClassH-
Drip ProofIP 23-
Voltage231 / 400 VV
Tolerance of Voltage%0,5-
Continuous Circuit-A
Phase Number--
Pole Number-

DIMENSIONS
Width (None-Cabine / Cabine)700 (700)mm
Length (None-Cabine / Cabine)1500 (1800)mm
Height (None-Cabine / Cabine)1130 (1300)mm
Weight (None-Cabine / Cabine)500 (620)kg

WELDING
Continuous Welding Circuit-A
Circuit Regulation Range-A
Priming Voltage-V
Idle Welding Voltage-V
